Our Specialty

Medical

As a leader in shielded enclosure commercial, industry and education research, Denker Engineering Sdn Bhd has the established experience, practical knowledge, with innovation advanced techniques and design ideas necessary to developed a green MRI Shielding room.

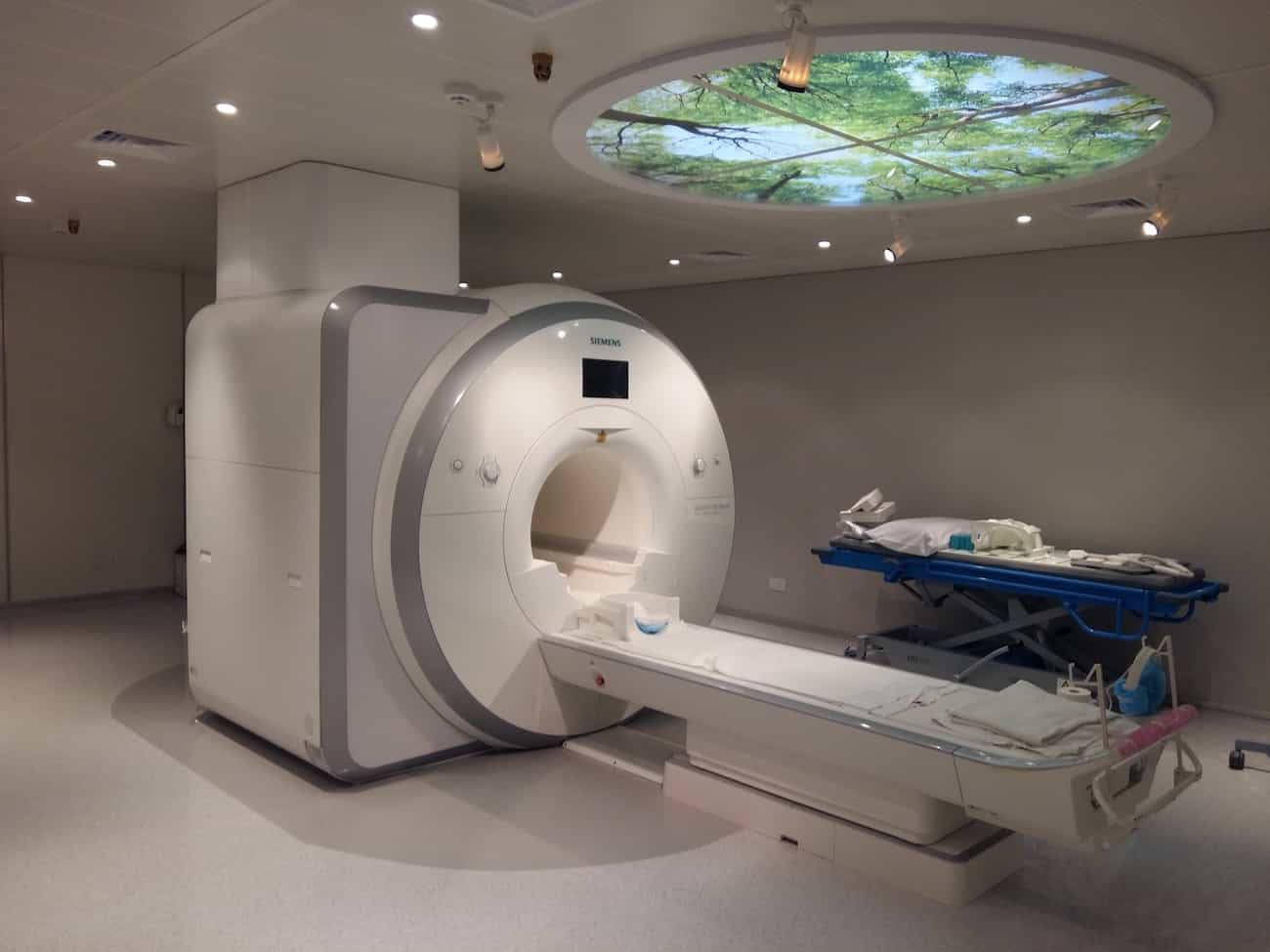

Green MRI shielding room

Application and benefit for Customer.

Our green MRI shielding room , having long-term stability of shielding performance and
insulation performance , and also guarantees long service life of the shielding room.

Cost effectiveness, with our RF cabin enclosure able to provide our clients become more
competitiveness, Unique and differentiating.

Innovation of RF cages and Magnetic Shielding build for long term stability of shielding
performance & insulation performance and also guarantees long service life of the shielding
room.

Self - supporting structure build up of Aluminum profiles, which replace the wooden structural .

  1. Environmentally- friendly aluminum material, having long -term stability of product performance, and achieves long service life and free maintenance of MRI shielding room.
  2. Special design and installation for sound insulation and absorption reaches upto 55dB noise reduction.
  3. Design of "field assembly ", it provides convenience to relocation or expansion in future , save of expenses and time.
  4. The product is equipped with powerful functions featuring shielding , decoration, sound insulation / absorption, heat insulation , preservation , green and environmentally- friendly functions, non pollution , intelligence , etc.
  5. On the basis of general type , there are middle and high grades of this shield product being added. We supply various optional items to satisfy all kinds of request from our customers. Principle of your solution Use of Aluminium profile for framing in replacement of wooden, to avoid having termite issue, strengthening of material, fire-resistant and free maintenance of MRI Shielding room.
  6. With Aluminium joining by welding , which fully overcomes all kinds of disadvantages, defects, and potential hazards of wooden.

High quality RF shielding

Mu-copper wall covering system Mu-Copper foil has high attenuation properties in the electrical field (up to 120 dB) as well as in the magnetic field.

It is easy to apply, like wallpaper, thanks to its special adhesive for walls, ceilings and floors. The interior finish can be plaster board, foam tiles or plywood.

Mu-Copper is used to transform a regular room into a shielded room; the product has excellent shielding performance even at low frequencies. The system is easy to mount on shielded doors with clamping devices.

Overlap options For the joints you can use a 50 mm overlap. For extra high performance you can fully solder the joints or use a seaming / copper tape with a conductive self-adhesive to apply over the joints.

For ventilation we have developed honeycomb ventilation panels. Especially for the Mu-copper Faraday cages we can deliver honeycomb vent panels with a Mu-copper flap around the edges.

Advantages Cost-effective / takes up little space

  • Light weight
  • Standard interior finish possible like plasterboard
  • Can be delivered with 10 year guarantee
  • Maintenance free Delivery with turnkey measurement report
  • Applications Medical examination rooms MRI, EEG, EMG & EVP Components
  • In addition to EMI shielded doors and windows, the screened rooms can be equipped with the following components:
  • Shielded doors
  • Shielded windows
  • Shielded ventilation panels
  • Power and signal filters

We also offer shielding solutions for water pipes, medical gases, and ventilation when needed. Options The Mu-copper Faraday cage can be equipped with the following options:

  • Waveguides for data communication
  • Shielded windows
  • Shielded ventilation panels
  • Power line filters
  • Signal line filters
  • Shielding solutions for water pipes and (medical) gases

Standard interior finish is possible (like glued plasterboard, foam tiles or plywood) You can create a Faraday cage with high shielding performance by economic way. This is possible in existing buildings as well as in new ones, without loss of space.

Depending on the quality of the doors, vent panels, filters and/or windows used, attenuation levels up to 80-100 dB in the E-field can be realized.

When more layers are applied, it is possible to achieve over 120 dB.

Ceiling The system can be used with a detachable or fixed ceiling to separate existing ducts and cables from the shielded room. For heavy duty applications we can supply Faraday cage doors that offer up to 140 dB reduction.

Reference to our principle of innovation from The Netherlands, Holland Shielding Systems BV. Denker Engineering Sdn Bhd , as authorize reseller to exhibit and represent the solutions and products of Holland Shielding Systems BV.


For More information: https://www.faradaycages.com/medical

Defense

Due to the extremely wide frequency range our systems and components perform in, we are capable of supplying any kind of HEMP and NEMP type of security shielding system. Our latest developments are a new range of Faraday cages offering not only EMI shielding but also protection against electromagnetic pulses (EMP).


For More information: https://www.faradaycages.com/defence

SERVER ROOMS

Electromagnetic radiation, RF and EMI shielding server rooms and chambers for data centers e.g . radar towers for airfields and secure tempest communication.


For More information: https://www.faradaycages.com/server-rooms

EAVESDROPPING

Cost – effective tempest shielding with High performance TEMPEST / EMSEC protection shiedling solution.


For More information: https://www.faradaycages.com/eavesdropping

FORENSIC RESEARCH

We produce investigation rooms and boxes for forensic applications so that the devices can’t make contact with the outside word.


For More information: https://www.faradaycages.com/forensic-research

MAGNETIC SHIELDING

With our long experience in both electromagnetic engineering and metallurgical specification, we are able to offer a full range of magnetic shielding products.


For More information: https://www.faradaycages.com/magnetic-shielding

TEST CHAMBERS

High performance of shielded anechoic chambers in full and semi with ground plane to simulate an Open Area Test Site (OATS) , for EMC emission and immunity testing.


For More information: https://www.faradaycages.com/test-chambers

INDUSTRIAL

Measures for protection from fires should ensure the control room will withstand thermal radiation effects without collapse and that smoke ingress is controlled.


For More information: https://www.faradaycages.com/industrial

SERVICES

We offer to provide a complete test and consultancy services for all MRI RF Cage , RF Testing on all types of permanent and superconducting magnet MRI scanners.

Pre- installation site surveys for MRI suites.

Ensuring the location is suitable and safe and passes the required criteria from the MRI manufacturer. Will measure the ambient field and when used with a detector will isolate the MRI from the surrounding interference.

active cancellation system. They will measure the ambient field and when used with a detector will isolate the MRI from the surrounding interference.

Necessary to performed of Fields measurement & Vibration measurement which allow the environment suitable to be located the magnet MRI scanners.


For More information: https://www.faradaycages.com/services

ELECTROSMOG

Electro – allergy , sick-building syndrome , radian protection private homes.

Electrosmog is the invisible electromagnetic radiation resulting from the use of both wireless technology and mains electricity.


For More information: https://www.faradaycages.com/electrosmog
